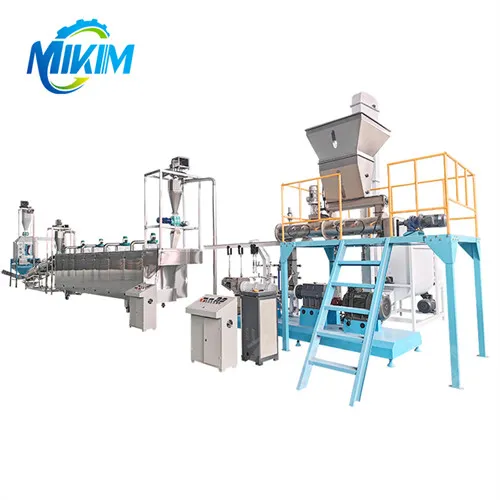

Automatic Fish Feed Pelletizing Production Line

The automatic fish feed pelletizing production line is easy to operate and can reduce the use of manpower.

Send Inquiry

Description

Products Description

Main equipment and functions of fish feed pellet production line
‌Crusher‌: Crush the raw materials for producing fish feed.
‌Mixer‌: Add a certain proportion of water and additives to the crushed raw materials and mix them evenly.
‌Feeder‌: Transport the mixed raw materials to the feeding hopper of the twin-screw extruder.
‌Twin-screw feed extruder‌: The mixed raw materials are extruded through the feed mold under high temperature and high pressure environment and the extrusion of the twin screws, and adjusted into feed pellets of the same size and length.

Product Parameters

Model	100	120	135	160
Power	37KW	55KW	75KW	90KW
Yield	700-1000	1200-1500	1500-1800	2000-2400
Weight	750KG	850KG	950KG	1200KG

Conveyor‌: Transport the produced fish feed pellets to the multi-layer drying equipment.
‌Multi-layer dryer‌: Generally an oven, including electric oven, fuel oven, gas oven and steam oven, used to dry feed pellets to a safe moisture content and increase the shelf life.
‌Spraying seasoning line‌: Including oil sprayers and seasoning cylinders for spraying oil and attractants, mainly spraying grease on the surface of the feed, and removing burrs and burrs on the surface of fish feed pellets to make the surface of the feed pellets smoother.
‌Cooling conveyor‌: Reduce the surface temperature of dried feed pellets, promote oil solidification, and facilitate packaging.
‌Vibrating screen‌: Screen out excess external materials and pellet debris.
‌Packaging machine‌: Package and seal the prepared fish feed.

Compact structure and strong adaptability‌: Small footprint and low operating noise. Powdered feed and grass powder can be pelleted with a small amount or without adding liquid, so that the moisture content of pellet feed is basically the same as that of the material before pelleting, which is more conducive to long-term storage. ‌High efficiency‌: Feeding chickens, ducks, fish and other animals with pellet feed can bring higher economic benefits compared to mixed powdered feed. Dry material processing technology ensures high hardness, smooth surface and good internal maturation of feed pellets, thereby improving the digestion and absorption rate of nutrients. ‌Versatility‌: Suitable for the processing of aquatic feeds for pigs, cattle, sheep, chickens, ducks, geese, fish and other livestock and poultry, and is an ideal choice for professional breeders and small and medium-sized feed processing plants.
