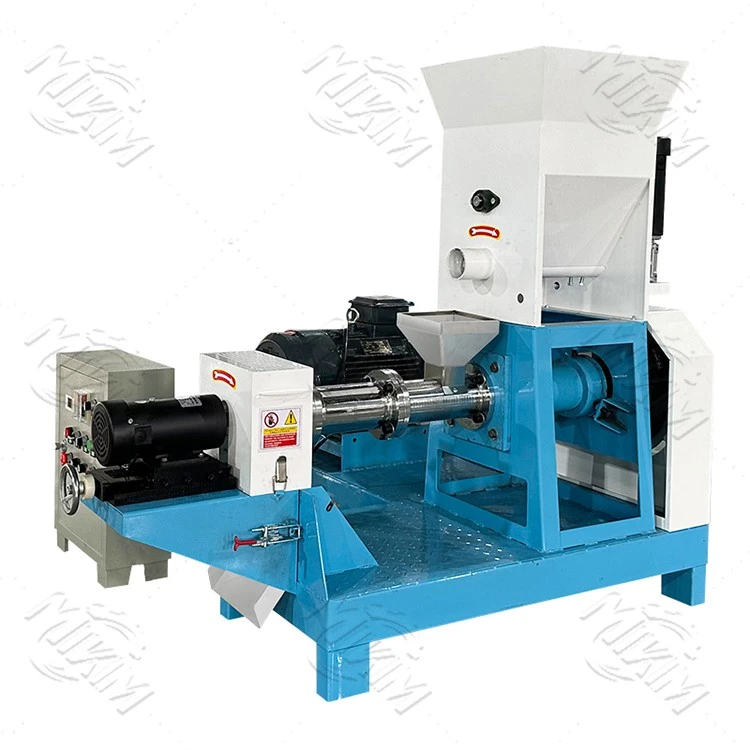

Small Fish Feed Extruder Machine



200 kg/h mini fish feed pellet-making machine





I am interested in this product





The feed extruder machine, also known as the floating fish feed extruder, is used for processing pet food for dogs and cats, as well as for birds, piglets, frogs, and both sinking and floating aquatic feeds for fish. It is a high-tech program designed to capture the growing pet food market.



The fish feed pellet food making machine primarily uses maize, fish powder, meat powder, and some food additives as raw materials. Through mixing, extruding, roasting, and flavoring, it produces the final puffed pet food, which is why it is also referred to as a dog food extruder



small fish feed pellet machine



Structure and Main Components of a Single Screw Floating Fish Feed Pellet Machine







Product Parameters



Model	Capacity   (kg/h)	Main motor (kw)	Feeder motor  (kw)	Cutter motor (kw)	Screw diameter (mm)	Machine size (mm)	Weight  (kg)
DGP-40	40-50	5.5	0.4	0.4	φ40	1.36*1.3*0.85	320
DGP-60	120-150	15	0.4	0.4	φ60	1.36*1.33*0.86	420
DGP-70	200-250	18.5	0.4	0.4	φ70	1.36*1.33*0.86	550
DGP-80	300-350	22	1.5	0.55	φ80	2.3*1.7*1.4	720
DGP-90	400-450	30	1.5	0.55	φ90	2.3*1.8*1.4	1100
DGP-100	500	37	1.5	1.5	φ100	2*2.8*1.2	1500
DGP-120	600-700	55	1.5	1.5	φ120	2.2*2.9*1.2	1800
DGP-135	800-900	75	1.5	2.2	φ135	2.2*3.1*1.37	2000
DGP-160	1000-1200	90	2 2	2.2	φ160	2.3*3.15*1.38	2500
DGP-200	1800-2000	132	3	3	φ200	2.35*3.45*1.65	3200





Component List of a dry type floating fish food pellet extruder machine



Model	Electric Motor	Diesel Engine	Single Screw	Twin Screw	Control Panel	Cutter Assembly	Cutter Slide Rail	Gearbox	Reducer	Construction Material
DGP series dry type floating fish food pellet maker machine	✅	❌	✅	❌	✅	✅	❌	✅	❌	Carbon Steel
Diesel Dry-Type Fish Feed Extruder	❌	✅	✅	❌	✅	✅	❌	✅	❌	Carbon Steel
LX series dry type floating fish feed pellet making mill	✅	❌	✅	❌	✅	✅	✅	✅	❌	Carbon Steel
LX-S series Dry Type floating fish feed pellet extruder machine	✅	❌	✅	❌	✅	✅	✅	✅	❌	SUS304
Twin screw Dry Type dog food pellet machine	✅	❌	❌	✅	✅	✅	✅	❌	(Note*)	SUS304



(Note*)：Reducer integrated inside the stainless steel housing.





Advantages：

1. The small fish feed-making machine is a granule feed-puffing equipment, which can produce many kinds of flower shapes, and the molds can be customized according to the requirements.

2. The product is equipped with a frequency conversion speed control rotary cutting device at the outlet, which can arbitrarily adjust the rotary speed of the blade to control the speed and length of the cut.

3. The cost of homemade expanded feed is 60%-80% lower than the market price; the expanded feed particles produced by this machine are neatly and smoothly shaped, float on the water surface for more than 12 hours without sinking, and do not pollute the water supply to reduce fish disease.

4. Simple material puffing machine model built-in screw, screw sleeve lengthening, material spinning and cutting time is long; the temperature can be adjusted, and the output torque can be adjusted, so that the material made of high degree of puffing and a smooth surface

5. Novel design, unique, simple structure, easy to install, easy to dismantle, easy to count, easy to operate. The screw sleeve and screw are made of special wear-resistant, high-temperature-resistant alloy steel material and heat-treated to have the advantages of wear resistance and long life.



Application





Ornamental fish feed extruders use corn, soybean (bean cake) animal scraps, etc. as raw materials, and is suitable for the production of feed with different pet flavors, such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, minks, foxes, etc.
A feed extruder machine is suitable for farmers and small and medium-sized feed factories. The feed is neatly formed and smooth; it floats on the water surface without sinking for more than 12 hours, does not pollute water sources, and sterilizes to reduce fish diseases.
