MIKIM is a machinery manufacturer. The equipment it produces is sold around the world and has received unanimous praise. It has passed many certifications such as CE and ISO. Our main products include feed extruders, feed pellet machines, and feed production lines, etc., which can effectively help farmers reduce production costs and reduce labor costs. If you need it, you can visit us at any time. We have hundreds of employees in the company and factory, and our professionalism is up to standard. You can choose us with confidence.
Why choose us?
Our Factory
We specializes in small agricultural machinery over 15 years, more than 5,000 square meters plant, more than 500 people.
Sales Market
Our machines are widely used in various fields of China and have exported to Southeast Asia, Europe, Africa, South America, Middle East Countries, and other areas.
Our Service
Our passion is Client Service: We work to exceed our clients' expectations with superior after sale service. This allows us to be specialists, to be always aware of the latest innovations and offer the best solutions.
Our Certifications
13 Years have been dedicated to the design and production of the feed machinery industry, which has passed many certificates such as CE, ISO, etc.

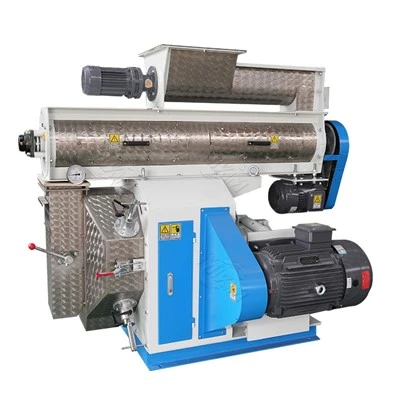

Types of Ring Die Feed Pellet Machine
Vertical ring die pellet mill
The vertical ring die pellet mill is specially designed to press the material which is hard to be bonded and shaped. The material can be loaded into the pelleting chamber in its own weight. Then, under the strong pressure between the rotating roller and the ring die, the material enters into the die holes to be formed into pellets. The vertical ring die pellet mill is called light-weight material pellet mill as well. Because vertical pellet mill is more suitable for managing the materials with light weight, such as, rice hull, grass with light weight, straw, melon and fruit hull and the material which is not easy to form.
Horizontal ring die pellet mill
Differ from the vertical ring die pellet mill, the horizontal ring die pellet mill adopts the feeding auger to feed the material into the pelleting chamber through the stock bin. The material begin to be soft in the sealed pelleting chamber, and under the great extrusion between rotating ring die in a high speed and the roller, the soft material is pressed into the holes uniformly distributed on the die. After that, the formed cylindrical solid body out of the holes will be cut by the knife, thus discharged through the export hole.
Benefits of Ring Die Feed Pellet Machine
Larger output
The production capacity of ring die pellet mill is relatively large and is more suitable for industrial pellet production.
Superior pelletizing capability
It can process very wide range of biomass materials, especially the hard wood materials, like palm fiber.
Higher quality pellets
The pellets made by ring die pelletizing machine have larger density and is much smoother surface due to its higher pressure.
Application of Ring Die Feed Pellet Machine
Farmers and agrologist use ring die pellet mills to make animal feed pellets. It ensures livestock has enough nutritious food. It also helps reduce waste from feed. The mills also make fertilizers. They compress raw organic matter into pellets. The pellets are easier to handle, transport and apply to plants.
Livestock farms that rear poultry such as chickens, ducks, and turkeys, ruminants such as cattle and sheep, and swine such as pigs make use of ring die pellet mills to produce animal feed pellets for their livestock. On swine farms, using pelletized feed can reduce feeding costs, improve feed efficiency, and help keep pigs healthy and clean.
Ring die pellet mills are used to make biomass energy pellets from agricultural and forestry waste. The biomass energy pellets are then used to produce energy to power homes or factories.
Large-scale feed manufacturers use ring die pellet mills to produce feed pellets for livestock. On some farms, they may lease out the pellet mills to save on production costs.
The Difference Between The Flat Die Pellet Mill And The Ring Die Pellet Mill
Feeding Method: The ring die pellet mill adopts mechanical forced feeding, high-speed rotation and centrifugal distribution into the granulation chamber, and the material is distributed by the scraper, and the feeding is uneven; the flat die pellet mill enters the pressing chamber vertically by the weight of the material itself. , can feed evenly.
Pressure: In a mold with the same diameter, the diameter of the ring die pressing wheel is limited by the diameter of the ring die, and the pressure cannot be adjusted. When pressing coarse fiber materials such as sawdust and peanut skin, it is difficult to form under the pressure designed by the machine, even if the molding is overloaded, the machine wears a lot, the mold pressing wheel skin needs to be replaced in time, and the mold can only be used once, and the follow-up cost is very large;
The flat die pellet mill machine adopts a complete steel structure The three conical pressure rollers have a large shaft in the middle, and a special heat-treated mold is installed below. The rotation of the mold drives the three pressure rollers above to rotate, the pressure is adjustable, the output is stable, the pellet density is large, and the front and back sides of the mold are can be used.
In addition, the diameter of the flat die pressing wheel is not limited by the diameter of the die, and the space for the shaft can be enlarged. The large bearing is selected to enhance the bearing capacity of the pressing wheel, and the pressing force and extension of the pressing wheel are improved.
Discharge Method: The ring die belongs to high speed, and the breakage rate is high when the material is discharged; while the flat die belongs to low speed, and the breakage rate is low.
Pressure Wheel Adjustment Method: The ring die pellet mill granulator uses two screws on the eccentric wheel in the middle of the pressure wheel to adjust the pressure; the flat die granulator uses a threaded screw center adjustment mechanism, the top force is 100 tons, and the falling Smooth, soft touch and even pressure.
Product Parameters
|
Model |
Capacity |
Power |
ConditionerPower |
Pellet size |
Feeder Power |
|
SZLH250 |
1-2 T/H |
22kw |
1.5 kw |
φ1.0-12.0mm |
0.55kw |
|
SZLH320 |
3-5 T/H |
37kW |
2.2 kw |
φ1.0-12.0mm |
1.5kw |
|
SZLH350 |
5-8 T/H |
55kw |
3.0 kw |
φ1.0-12.0mm |
1.5kw |
|
SZLH420 |
10-12 T/H |
110kw |
7.5 kw |
φ1.0-12.0mm |
2.2kw |
|
SZLH508 |
12-18 T/H |
132kw |
11 kw |
φ1.0-12.0mm |
2.2kw |
Packaging and Shipping
FAQ
We're professional ring die feed pellet machine manufacturers and suppliers in China, specialized in providing high quality customized service. Please feel free to wholesale high-grade ring die feed pellet machine made in China here from our factory.
