Best Sinking Fish Feed Extruder Machine
The floating fish feed extruder machine is a core equipment in modern aquaculture feed production, specifically designed to process various raw materials such as fish meal, plant protein (soybean meal, peanut meal, etc.), starch, vitamins, and minerals into high-quality floating fish feed pellets.
Description
Customers test automatic floating fish feed making machine
The fish feed making machine integrates multiple functions such as mixing, conditioning, extrusion, puffing, cutting, and cooling, realizing one-stop production of floating fish feed and effectively simplifying the production process while ensuring feed quality. Machines, molds, voltage, etc. can all be customized.

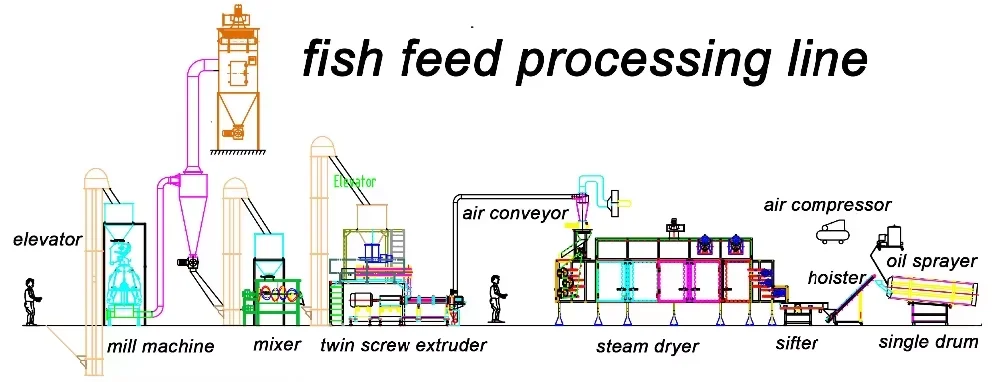

A fish feed pellet production line is an automated set of equipment that integrates multiple processes, including raw material pretreatment, mixing and conditioning, pelleting, drying and cooling, screening and grading, and finished product packaging. It is specifically designed to process various raw materials such as fishmeal, soybean meal, grains, minerals, and vitamins into pelleted feed that meets the feeding needs of fish at different growth stages.
The core functions of a fish food pellet making machine include:
Raw Material Mixing and Homogenization:
It can fully mix fish meal, plant protein, starch, and other additives in a scientific proportion, ensuring that each feed pellet contains balanced nutrients, avoiding nutrient segregation, and laying a foundation for high-quality feed production.
High-Temperature and High-Pressure Conditioning:
Through steam pre-conditioning or mechanical friction heating, the raw materials are heated and moistened, promoting starch gelatinization and protein denaturation, which improves the digestibility and nutrient absorption rate of the feed for fish.
Extrusion and Puffing Forming:
Under high temperature and pressure, the mixed raw materials are extruded through a die, forming uniform pellets with a porous structure. The puffing effect gives the feed excellent floating performance, which can float on the water surface for a long time without dissolving, facilitating fish feeding and reducing feed waste.
Adjustable Pellet Cutting:
With an adjustable cutting device, it can suit the feeding requirements of fish of various species and growth stages by producing feed pellets of various sizes (typically 0.5mm–15mm) by changing dies or varying the cutting speed.
Integrated Cooling and Drying:
In order to lower moisture content, increase pellet hardness and durability, and prolong the feed's shelf life while maintaining its floating stability in water, the extruded high-temperature pellets are cooled and dried on schedule.
Nutrient Retention Control:
It can precisely manage the processing settings to reduce the loss of heat-sensitive nutrients (such vitamins and amino acids) during high-temperature and high-pressure processing thanks to its clever temperature and pressure regulation technology.
Product Parameters
|
Model
|
Capacity
(kg/h)
|
Main motor
(kw)
|
Feeder motor
(kw)
|
Screw diameter
(mm)
|
Cutter motor
(kw)
|
Machine size (m)
|
Weight
(kg)
|
|
D-LX-65
|
180-200
|
15
|
0.4
|
φ60
|
0.4
|
1.78*1.25*1.3
|
480
|
|
D-LX-70
|
250-300
|
18.5
|
0.75
|
φ70
|
0.55
|
2.46*1.55*1.74
|
940
|
|
D-LX-80
|
350-400
|
22
|
1.1
|
φ80
|
0.55
|
2.65*1.45*1.75
|
1000
|
|
D-LX-90
|
500-600
|
37
|
2.2
|
φ90
|
1.5
|
2.6*2.1*1.9
|
2000
|
|
D-LX-100
|
700-800
|
55
|
2.2
|
φ100
|
1.5
|
3.2*1.95*1.9
|
2200
|
|
D-LX-135
|
1000-1200
|
75
|
2.2
|
φ135
|
2.2
|
3.57*1.98*1.8
|
2500
|
|
D-LX-145
|
1800-2000
|
90
|
3
|
φ145
|
3
|
6.6*2.8*2.33
|
3800
|
|
D-LX-175
|
3000-4000
|
132
|
3
|
φ175
|
3
|
6.6*2.9*2.35
|
4500
|
Advantages of floating fish food pellet maker machine
High Efficiency
The floating fish food production machine adopts optimized screw design and advanced transmission system, which greatly improves the extrusion efficiency and production capacity. Compared with traditional feed processing equipment, it shortens the production cycle by 30%-50%.
Energy Saving
The machine adopts energy-saving motor and optimized structural design, which effectively reduces energy consumption. The power consumption per ton of feed is 20%-30% lower than that of traditional equipment.
Environmental Protection
The machine adopts closed production design, which effectively prevents dust leakage during raw material processing and extrusion, reducing air pollution and protecting the working environment and operator health
Raw materials:
Moisture of raw materials: 20%-25%
Oil content: below 10 %
Starch content: over 30%
Raw materials: Power
Final Products:
Company Profile
• Inside package is plastic film, outside is wooden or plywood case(based on the customers'
need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
FAQ
Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit and check the machine to my factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for a 10-day period installation and training to the operators.
Q:do you supply any formula to buyer?
A:yes, we supply formula to buyer.
