Automatic Shrimp Feed Pellet Production Line
The feed pellet production line has a high degree of automation and is easy to operate.
Description
Products Description
Fish Feed Extruder Feature:
1.This fish feed machine is pellet feed extrusion equipment. Fish food, cat food, dog food and other pet feed extruder. Various patterns can be produced, and the molds can be customized according to requirements.
2. The product discharge port is equipped with frequency conversion speed control rotary cutting device, which can be arbitrarily adjusted blade speed, control cutting speed and length
3. This fish feed equipment takes corn, soybean (bean cake) and other animal scraps as raw materials, which can be directly added to the machine to produce different pellets with novel shape, unique taste, rich nutrition and fine organization. Suitable for dogs, cats, fish, birds, rabbits, shrimps, etc.
4. If the raw material is in powder form, it can be made into granule directly; if the raw material is in granule form, it should be crushed into powder less than 3mm first.
5. Raw material moisture also has certain requirements, if less than 30%, it is better.
Product Parameters
|
Model |
40 |
60 |
70 |
80 |
|
Power |
5.5KW |
15KW |
18.5KW |
22KW |
|
Yield |
120-150 |
180-220 |
240-300 |
400-500 |
|
Weight |
350KG |
450KG |
500KG |
580KG |
|
Size(mm) |
1500*1100*1100 |
1600*1300*1250 |
1600*1300*1250 |
1800*1400*1350 |

1. Put the blended ingredients and blended water into the blender and mix them quickly.
2. Put the mixed raw materials into the feeding hopper of the extruder, open the feeding device, temperature control, cutter for puffing production
3. Put the container under the discharge port of the extruder, and use the container to hold the semi-finished pellets.
4. Put the semi-finished pellets in the container into the hot air dryer, open the dryer and dry evenly.
5. Put the dried semi-finished pellets into the anise seasoning machine, add the animal fats and oils for tumbling and seasoning.
6. After seasoning, pour out the granules, which is the finished product of pet food.
Animal Poultry Cat Dog Feed Grinder Mixer Production Line Automatic Floating Fish Feed Pellet Making Machine Mill :

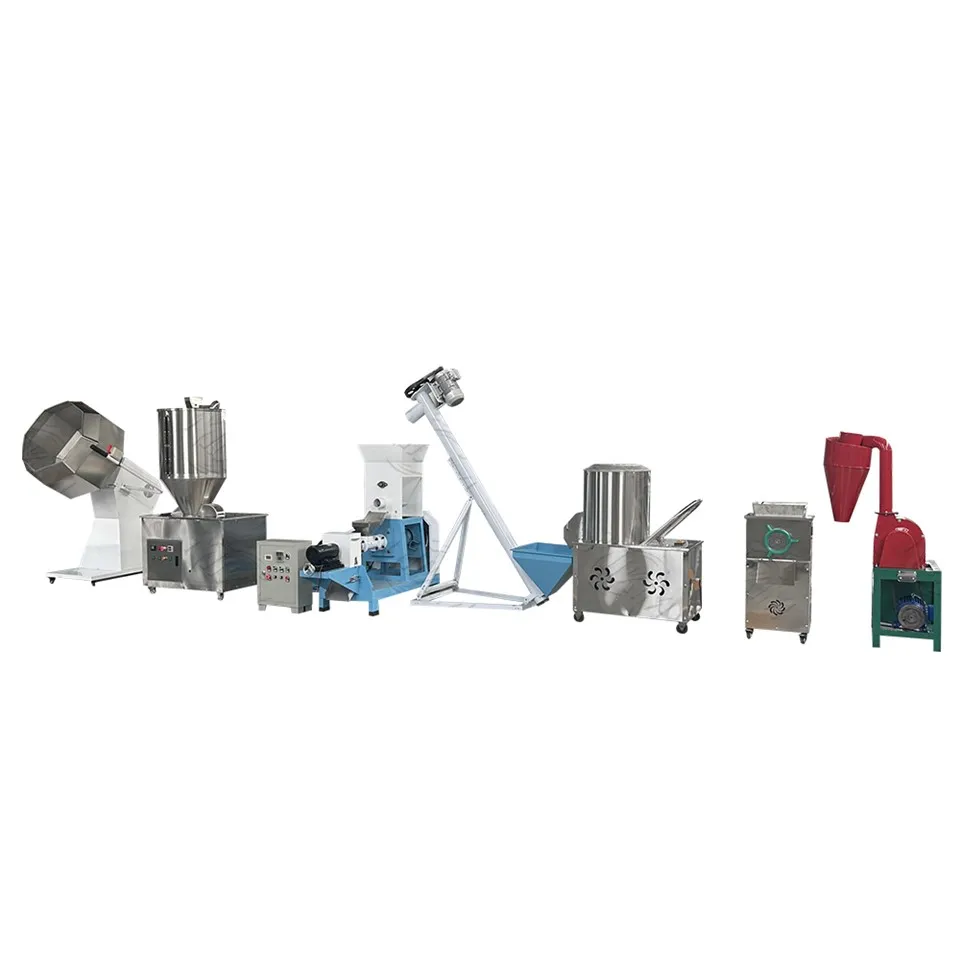

This is a mini size fish feed production line, which including a corn grinder, a feed mixer, a pellet extruder and a dryer. It is a semi-automatic feed processing line, not including belt conveyor. So that to reduce the budget for this feed production line,suitable for beginner those new to the feed making industry and small to medium scale fish farming
