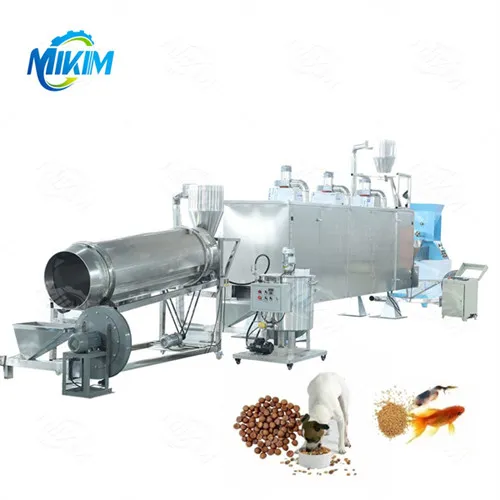

Floating Pellet Feed Production Line

The fish feed pellet line is widely used in the production of animal feed, such as dogs, cats, fish, foxes, birds, and other pets.
Capacity:40-300kg/h
Power:16-68kw
Range of application:Fish farm or small feed shop
Size for whole line:5×2×3m

Send Inquiry

Description

Products Description

Our fish feed production line is designed with full consideration of the actual needs of customers. It adopts advanced automatic control system and is easy and convenient to operate. We also provide customers with a variety of molds with different particle sizes to choose from, so that the feed can adapt to the feeding characteristics of different fish.
In addition to the basic functions, our fish feed production line also has some noteworthy details and knowledge. For example, the larger the hopper capacity of the fish feed production line, the higher the work efficiency of the operator; the size of the discharge hole of the extrusion screw rod of the fish feed production line is related to the particle size of the feed, and feeds of different particle sizes can be achieved by adjustment.

fish feed production line

floating fish feed production line

Floating fish feeds has very strong water stability (wouldn't apart within 16-32 hours), with little pollution on the
water.Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and
growth,conducive to scientific management.

How to choose a feed production line that suits you?

*‌Small farms‌ (daily output ≤ 5 tons): integrated units are preferred, such as crushing-mixing-granulating machines, which occupy a small area and are suitable for single-phase electricity operation‌.
*‌Large-scale feed mills‌ (daily output ≥ 10 tons): modular production lines are required, including extruders, ring die pelletizers, automatic batching bins, multi-layer conditioners and robot stacking systems to meet the needs of efficient and continuous production‌.

We will recommend several common production line combinations for you:

40-300kg/h Aquatic/Pets Fish Feed Small Production Line Farm Use

This small floating fish feed production line including: Crusher + Mixer + Feed pellet extruder + Dryer. Powered range: 16-68kw,Capacity range: 40-300kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable Fish farm or small feed shop

Capacity	40-300kg/h
Power	16-68kw
Range of application	Fish farm or small feed shop
Product advantages	Cheap and simple operation,Easy to move,small size,Low transportation cost,pellet size could be chosen from 1-12mm
Process flow	1.Crusher -2.Mixer -3.Feed pellet extruder -4.Dryer
Size for whole line	5×2×3m
Workers requirements	2 people
Shipment requirements	Wooden case package by LCL (4-7CBM)

200-800kg/h Commercial use Aquatic/pets feed production line

This medium size fish feed production line including: Crusher + Conveyor + Mixer + Conveyor + Feed pellet extruder+ Air conveyor +Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 200-800 kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for small/medium Commerical Aquatic /pets feed factory,big farm

Capacity	200-800kg/h
Power	86-152kw
Range of application	Good for small/medium commerical Aquatic /pets feed factory,big farm
Product advantages	Stable output,high efficiency,continuous work,labor saving, can pack directly,pellet size could be chosen from 1-12mm
Process flow	1.Crusher -2.Conveyor -3.Mixer -4. Conveyor -5.Feed pellet extruder -6.Air conveyor -7.Dryer -8.Air conveyor -9.Seasoning machine -10.Air conveyor -11.Cooler -12. Air conveyor -13. Finished product silo
Size for whole line	25×3×6m
Workers requirments	2-3 people
Shipment requirments	40ft container

500-2000kg/h Commercial use Aquatic/pets feed production line

This medium size fish feed production line including: Bucket elevator + Buffer bin + Hammer mill + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 500-2000kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for medium/big commerical Aquatic /pets feed factory

Capacity	500-2000kg/h
Power	94-217kw
Range of application	Good for medium/big commerical Aquatic /pets feed factory
Product advantages	Long working life,make high protein feed,Stable output,high efficiency, continuous work,labor saving,can pack directly,pellet size could be chosen from 1-12mm
Process flow	1.Bucket elevator -2.Buffer bin -3.Hammer mill -4.Bucket elevator -5.Buffer bin -6.Mixer -7.Bucket elevator -8.Broken arch bin -9.Wet way feed pellet extruder -10.Air conveyor -11.Dryer -12.Air conveyor -13.Seasoning machine -14.Air conveyor -15.Cooler -16.Air conveyor -17.Finished product silo
Size for whole line	Length: 35m-50m Width: 6m Height: 8m
Workers requirements	3-5 Workers
Shipment requirements	2×40ft container

3-4ton/h Commercial use Aquatic/pets feed production line

This medium size fish feed production line including: Bucket elevator + Buffer bin + Impeller feeder with iron removal device + Hammer mill with dust collector + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Bucket elevator + Seasoning machine + Bucket elevato + Cooler + Bucket elevator + Finished product silo + Packing and seal machine. Capacity range: 3~4ton/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for large commerical Aquatic /pets feed factory

Capacity	3-4ton/h
Range of application	Suitable for large commerical Aquatic /pets feed factory
Product advantages	Long working life,make high protein feed , stable output, high efficiency, continuous work, labor saving, can pack directly,pellet size could be chosen from 1-12mm
Process flow	1.Bucket elevator -2.Buffer bin -3.Impeller feeder with iron removal device -4.Hammer mill with dust collector -5.Bucket elevator -6.Buffer bin -7.Mixer -8.Bucket elevator -9.Broken arch bin -10.Wet way feed pellet extruder -11.Air conveyor -12.Dryer -13.Bucket elevator -14.Seasoning machine-15.Bucket elevato -16.Cooler -17.Bucket elevator -18.Finished product silo-19.Packing and seal machine
Size for whole line	Length: 45m-50m Width: 8m Height: 10m
Workers requirements	4-6 Workers
Shipment requirements	4×40ft container
Shipment requirements	2×40ft container

Why choose us?

1. We are a manufacturer with low prices and strictly controlled equipment quality.
2. Our equipment has been sold to many countries and has received unanimous praise.
3. Our after-sales service is perfect and can solve your questions at any time 24 hours a day.
4. If necessary, we will send professional technicians to your country to solve your problems.
