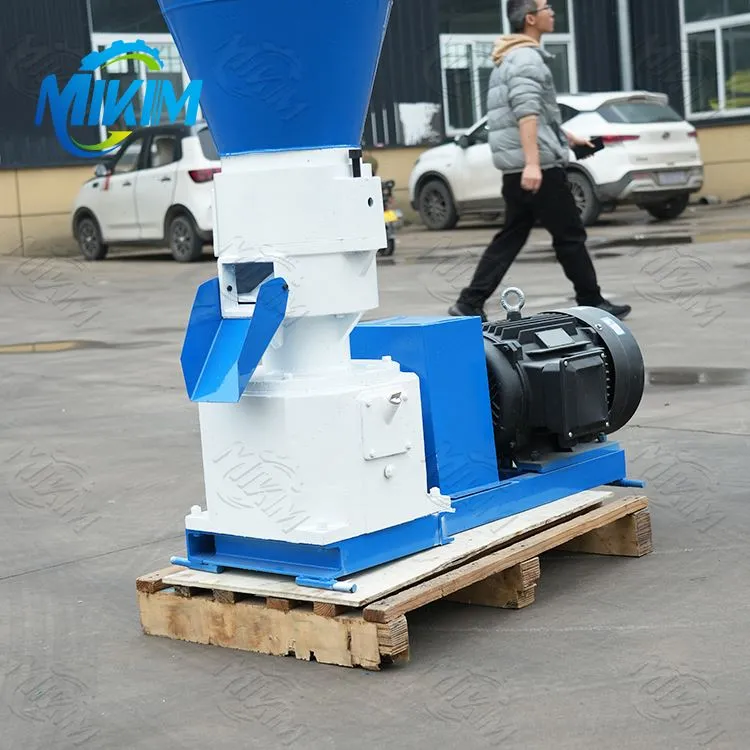

Home Feed Pellet Machine
The emergence of feed pellet machines has reduced the cost of breeding.
Description
Products Description
When facing a sudden stop failure, we need to follow these steps to check and take corresponding repair measures one by one.
Confirm whether there is an overload situation, and even check whether the fuse is blown;
Check whether there is any foreign matter in the cavity.
For these possible problems, we need to check and take appropriate solutions one by one.
Adjust the gap between the roller and the flat die to ensure that it is appropriate; if necessary, replace the fuse.
Stop the machine and thoroughly remove the foreign matter in the cavity.
Product Parameters
| Model | Capacity | Power | Dimension | Weight |
| 125 | 80-100kg/h | 3kw | 110*35*70 cm | 95 kg |
| 150 | 120-150kg/h | 4kw | 115*35*80cm | 100 kg |
| 210 | 200-300kg/h | 7.5kw | 115*45*95cm | 300 kg |
Next, we can follow these debugging plans to step by step check and solve the problem.
1. Before debugging the pellet feed production line, the first task is to be familiar with the entire process and deeply understand the functions and effects of each specific equipment.
2. During the debugging process, the operating status of each equipment should be evaluated one by one, and the crushing particle size of the crusher corresponding to the die hole of the pelletizer used should be understood. The particle size control of the raw material is crucial. It should not be too coarse or too fine, but should be controlled within an appropriate range. It is recommended to follow the following ideal particle size distribution:
A. The part with a particle size of more than 3.35mm should be controlled below 1%;
B. The part with a particle size of more than 2.0mm should not exceed 5%;
C. The part with a particle size of more than 1.0mm should account for about 20% of the total;
D. The part with a particle size of more than 0.5mm accounts for about 30% of the total;
E. The part with a particle size of less than 0.25mm should not be less than 20%;
F. The part with a particle size of more than 0.25mm accounts for about 24%.
