Key Considerations for Purchasing a pet food processing machine



Key performance parameters: Precise control of extrusion effect. The screw speed of a dog food production machine is a core parameter, requiring variable frequency speed control with a range of 200-400 rpm. This speed can be adjusted according to feed type-increasing the speed for highly extruded feed and decreasing it for compact feed. The extrusion pressure needs to be stable at 3-6 MPa (single screw) or 4-8 MPa (twin screw), with pressure fluctuations ≤ ±0.2 MPa to avoid fluctuations in extrusion effect. Temperature control accuracy is particularly important for wet extruders, requiring segmented temperature control within a range of 60-160℃, with an error ≤ ±3℃, ensuring complete melting of raw materials and preventing loss of heat-sensitive nutrients. Furthermore, production capacity stability is crucial; the error in the equipment's stated capacity should be ≤ ±5% to avoid actual output falling short of expectations. For example, when purchasing a twin-screw wet extruder for producing high-end pet food, it's necessary to confirm an adjustable speed range of 250-400 rpm, temperature control accuracy of ±2℃, and pressure fluctuation of ±0.1 MPa to ensure uniform extrusion and nutrient retention.



The quality of core components determines the lifespan and maintenance costs of a dog food processing machine. The screw and extrusion chamber are the "heart" of the extruder. They must be made of 38CrMoAl nitrided steel with a surface hardness ≥ HRC60, ensuring wear and corrosion resistance. The screw's lifespan should be ≥ 1500 hours (single screw) or 1000 hours (twin screw). The inner wall of the extrusion chamber must be fitted with wear-resistant bushings that can be replaced individually, reducing maintenance costs. The die head must support multiple sizes (1-5mm orifice), made of SKD11 alloy, with an orifice error ≤ ±0.2mm to ensure accurate particle size. The drive motor must be from a well-known brand (such as Siemens, YE2 series), with power matching production capacity and overload protection to ensure stable operation. In terms of manufacturing processes, the fit clearance between the screw and extrusion chamber must be checked (≤0.2mm) to avoid insufficient pressure due to excessive clearance, which would affect the puffing effect. For example, a high-quality single-screw extruder features a screw treated with 38CrMoAl nitriding, boasting a service life of 2000 hours. The die supports 1-4mm orifice replacement, resulting in maintenance costs 30% lower than ordinary equipment.

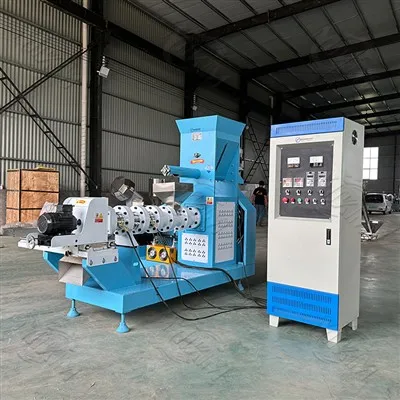

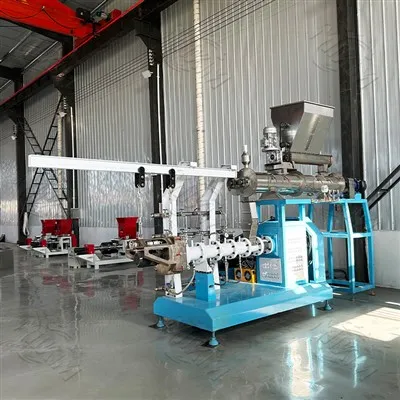

Complete Equipment Configuration: Enhancing Production Ease. A top-of-the-line floating fish feed pellet extruder should be equipped with comprehensive auxiliary features: the feeding system should include a vibrating feeder to ensure uniform feed and prevent clogging; the discharge system should include an adjustable-speed cutting device, with the cutting speed synchronized with the screw rotation to ensure uniform pellet length; safety features should include a protective cover, emergency stop button, and pressure overload alarm to ensure production safety; and monitoring features should include real-time pressure and temperature displays for easy parameter adjustment. Furthermore, support for automation upgrades (such as integration with automatic batching and packaging systems) should be considered to allow for future large-scale production. For instance, when purchasing an industrial twin-screw extruder, models with automatic feeding, online monitoring, and alarm functions should be selected to improve production automation and reduce manual intervention.











MIKIM's fish feed pellet production lines and supporting machinery offer excellent value for money. Not only are they affordable, eliminating middlemen markups and allowing small and medium-sized enterprises (SMEs) and fish farmers to purchase complete sets of equipment at reasonable costs, but they also boast exceptional efficiency. The fully automated process, from raw material crushing and precise ingredient mixing to extrusion pelleting and maturation, is completed in one continuous flow. This results in high starch gelatinization rates and uniform pellet formation, significantly improving production efficiency and feed quality, truly achieving "low cost, high output." Choosing a MIKIM fish feed pellet production line means enjoying comprehensive pre-sales and after-sales service, including 24-hour online customer support, a one-year warranty on the entire machine, professional on-site installation, commissioning, and maintenance, and a stable supply of spare parts. Customers can buy with confidence and use with peace of mind, with both excellent value and service quality!!!



Customer visit

Certificate of Honor





1. What is the price of the dog food pellet machine?

The price ranges from approximately $1,500-$55,000

2. Do you provide maintenance services for your customers?
Yes, we offer comprehensive after-sales maintenance services to our customers.



If you would like to learn more about MIKIM machinery, please contact us. We offer one-stop service and welcome your inquiries!!!



Contact now
