Extruded Feed Pellet Production Line

The puffed feed production line uses high temperature and high pressure treatment to gelatinize starch and denature protein in feed raw materials, thereby improving the digestibility and utilization of feed. This treatment method can make the nutrients in feed easier to be absorbed and utilized by aquatic animals, reducing feed waste and reducing the cost of aquaculture.

The feed puffing production line adopts fully automated technology, which greatly reduces the use of labor costs. Multiple parts cooperate with each other to complete the production of puffed feed. The complete production process is: raw material mixer - raw material crusher - feed extruder - conveyor - automatic dryer - cooling tower - drum seasoning machine (optional oil sprayer) - packaging machine.

Extruded feed is animal feed that has been extruded. This feed is usually made through a high-pressure and high-temperature extrusion process, which can improve the taste and digestibility of the feed, and also increase the nutrient density and nutritional value of the feed.
Compared with traditional feed, extruded feed is easier to digest and absorb, so it can help animals better utilize nutrients and improve the efficiency of meat production. Let you get more benefits.
This feed can float on the water for a long time and has little pollution to the water quality.

In order to help you understand the puffing production line more quickly, I will introduce the functions of each part of the production line.



raw material mixer



The Raw material mixer is used for mixing the ingredients, you can mix the rich ingredients well, you can also add a variety of nutrients, so that the nutrition is more balanced.



Model	Capacity(kg/batch)	power(kw)
LX-HY0.3	150	2.2
LX-HY0.6	300	4
LX-HY1.0	500	7.5
LX-HY0.6	300	4
LX-HY1.0	500	7.5
LX-HY2.0	1000	18.5

raw material crusher



Hammer mill is used to crush grain, straw, hay, etc. Hammer mill has a wide range of uses. It is used in poultry and animal feed production lines.
The Raw material grinder are used to grind solid raw materials into smaller particles. They are particularly suitable for pulverizing grains, seeds and other hard materials into a homogeneous powder suitable for granulation. Makes subsequent granulation easier.



model	capacity(kg/batch)	power(kw)	weight(kg)
LX-FS400	200-500	7.5	260
LX-FS420	300-900	11	340
LX-FS500	800-1700	15	540
LX-FS520	900-2000	22	680

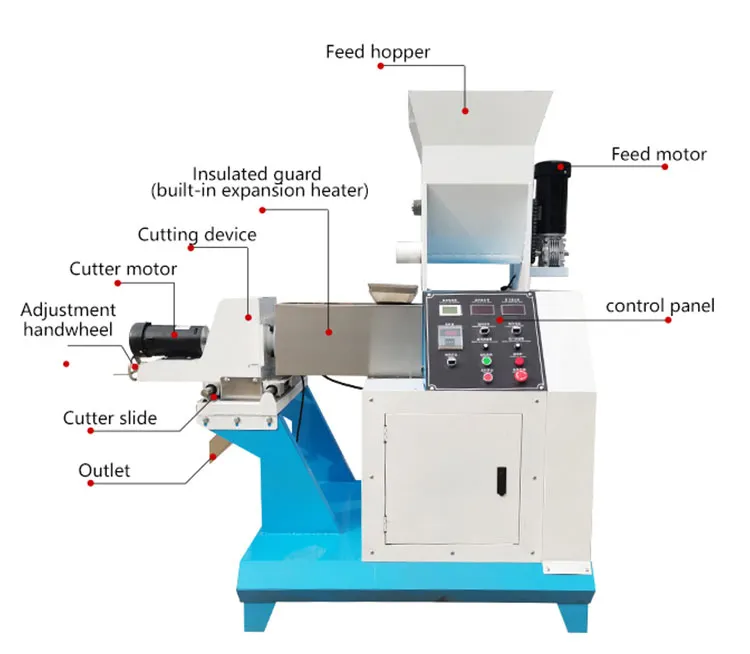

Extruder Machine



Feed extruder is a kind of equipment that processes feed through high temperature and high pressure, and its application range is wide. It is mainly used in poultry, livestock, aquaculture, pet food and other industries. Through extrusion processing, the feed tastes better, is easier to digest and absorb, and can improve the nutritional value of the feed.

Model	LX45	LX65	LX75
Power	5.5KW	15KW	18.5KW
Yield	140-160	200-240	260-320
Weight	350KG	500KG	550KG
Capacity	50KG/H	150KG/H	200-300KG/H
Size(mm)	1800*810*1080	1700*970*1240	1700*970*1240

pneumatic conveyor



The air conveyor can transport the finished pellets to the dryer in an enclosed and pollution-free environment, making the pellets safer.







model	power(kw)
TLSS12	1.5
TLSS14	2.2-3
TLSS20	3-4



Automatic dryer



Box dryer drying uniform, fast, high efficiency, and the material is not easy to stick, can realize automatic temperature control, automatic moisture removal, can make the drying material to maintain a better form, to maintain the color and shape of the drying material, improve the quality of the product.

model	Capacity(kg/batch)	power(kw)	weight(kg)
LX-HG50	50	4.7	50
LX-HG100	100	9	80
LX-HG150	150	9	95
LX-HG200	200	13	140
LX-HG300	300	18	160
LX-HG400	400	22	190

Cooling tower

The Cooling tower the high temperature and high humidity particles, the hot air contacts with the hot material and the cold air contacts with the cold product, avoiding the direct contact between the cold air and the hot material, resulting in sudden cold causing cracks on the surface of the particles. The air outlet adopts the design of large air outlet, rapid cooling, four directions are equipped with observation port to facilitate the observation of the situation in the warehouse.





model	Capacity(T/H)	power(kw)
SKLN11*11	1-2	1.5
SKLN14*14	2-4	1.5
SKLN17*17	4-7	1.5
SKLN20*20	7-12	2.2
SKLN24*24	12-20	2.2

Seasoning System



The equipment is made of stainless steel, which makes the work of feed seasoning convenient, and truly realizes fully automated production, saves time and effort, and flavors the tasteless feed to help animals better eat and absorb.






model	Capacity(kg/h)	power(kw)	weight(kg)
LX-BJ25	250-300	1.1	120
LX-BJ50	350-400	1.1	130

Packing machine



The packer is responsible for packaging the finished feed into bags or other containers. It ensures that the feed is well sealed to maintain freshness and protects it from environmental factors during transportation and storage.





model	precision	packaging speed
LX-01(No bucket)	0.20%	200-300bag/h
LX-02(Single bucket)	0.20%	300-400bag/h
LX-02(Double bucket)	0.20%	400-500bag/h



1. We can build all kinds of fully automatic feed production lines.
2. Customize turnkey production lines according to your needs.
3. We have experienced technical experts to provide you with first-class technology and equipment.
4. We have perfect after-sales service and provide professional and systematic training to maximize the needs of the project.

Our machines are widely used in various fields and exported to Southeast Asia, Europe, Africa, South America, Middle East countries and other regions.
European technology, perfect performance. MIKIM is your reliable machinery supplier. We have very attractive prices and are looking for overseas agents. Welcome to contact us for more information. You will be surprised that by cooperating with us, your company can achieve significant cost reduction and efficiency improvement.
