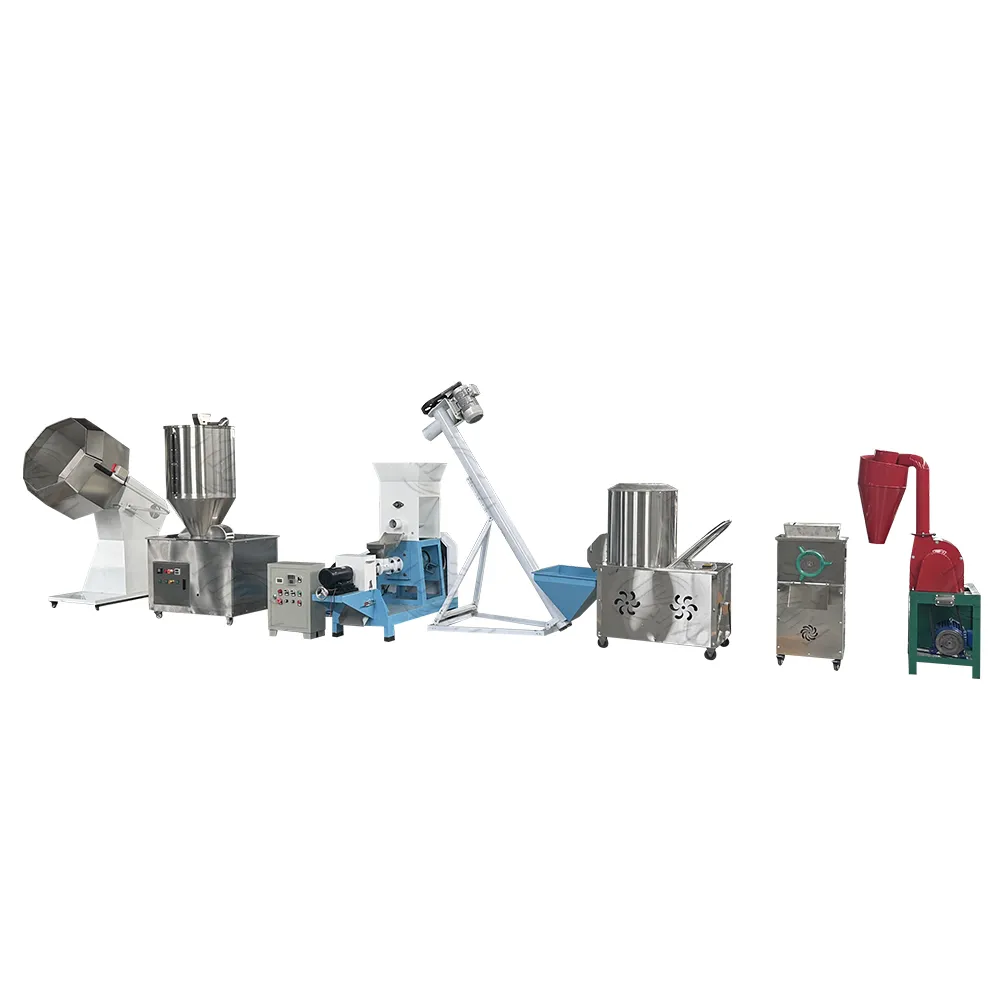

Large Fish Feed Pelletizing Production Line
Fish feed production line can reduce the cost of breeding.
Description
Products Description
Raw material pretreatment system
Cylinder primary cleaning screen: intercepts large impurities such as straw and stones through the rotating screen surface to improve the purity of raw materials.
Permanent magnetic cylinder: absorbs iron filings and metal impurities to protect the safe operation of subsequent equipment.
Crushing and processing system
Water drop type grinder: supports coarse grinding to fine grinding (adjustable particle size), processes raw materials such as soybean meal and corn, and adapts to the nutritional needs of fish feed.
Product Parameters
| Model | 100 | 120 | 135 | 160 |
| Power | 37KW | 55KW | 75KW | 90KW |
| Yield | 700-1000 | 1200-1500 | 1500-1800 | 2000-2400 |
| Weight | 750KG | 850KG | 950KG | 1200KG |
| Size(mm) | 1970*2900*1150 | 2200*2900*1200 | 2350*2900*1200 | 2350*2900*1400 |
Mixing and blending system
Double-shaft paddle mixer: stainless steel material design, supports accurate proportioning of additives such as oils and vitamins.
Puffing and granulation system
Twin screw extruder: adopts wet or dry process, high temperature and high pressure extrusion to improve starch gelatinization, produce floating fish feed, and can reach 1-5 tons per hour.
Ring die pellet machine: suitable for large-scale production (15-20/hour), adjustable compression ratio, meet the switching needs of sinking and floating feed.
Post-processing system
Countercurrent cooler: quickly cool to room temperature and extend storage period.
Rotary grading screen: screen qualified particles and remove powder and debris.
Small and medium scale: select an extruder with an output of 1-3 tons per hour, equipped with a single-shaft mixer and simple packaging equipment.
