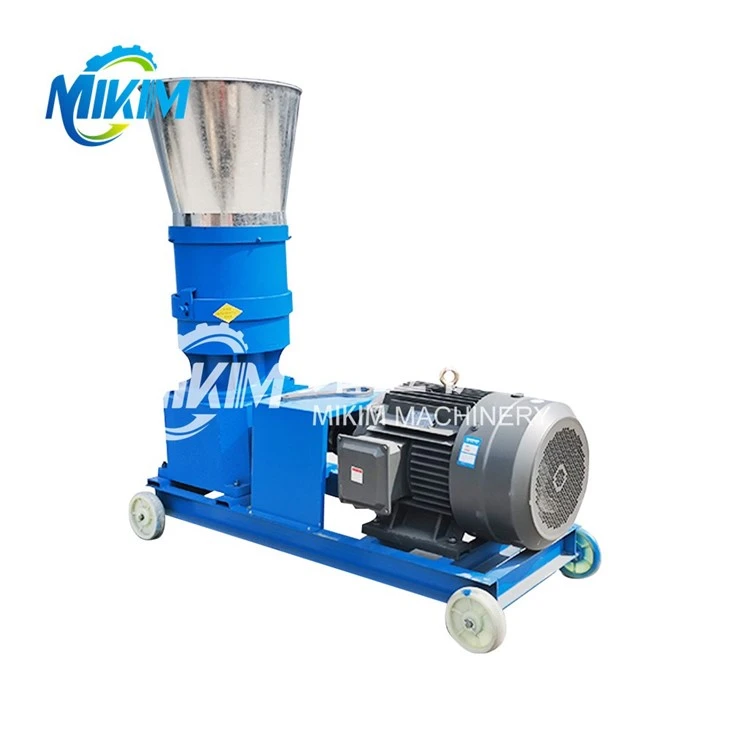

Chicken Feed Maker Machine

Pellet grinder machine has many advantages, and small footprint is just one of them

Send Inquiry

feed pellet machine

Description

Feed granulator

Chicken food mill malfunction causes

Why can't the feed pellet mill press out pellets?
1. High moisture
One of the biggest reasons why the feed pellet machine can not press out pellets is that the moisture of raw materials is too high. Feed pellet machine is under high temperature and high pressure to extrude raw materials into particles, if the raw material in the moisture is too much, it is easy to cause the pellet machine blockage and inconvenient to operate. Therefore, before using the feed pellet mill, the humidity of the raw material must be controlled between 15% and 18%.
2. Too loose
If the raw material is too loose, it will make the pellet machine difficult to form particles when extruding, so before using the pellet machine, the raw material needs to be ground into a smaller powder.
3. Gas content is too high
If the raw material contains a large amount of gas, the pellet machine will not be able to form the particles. Therefore, before using the pellet machine, the raw materials need to be fully processed to discharge the gas, to ensure that the gas content of the raw material is controlled within the appropriate range.

Animal pellet making machine

Model	Main Power	Pellet Size	Capacity(kg)	Size(cm)
125	4KW	φ2-8mm	60-80	1053461
150	4KW	φ2-8mm	100-120	1053461
160	4.5KW	φ2-8mm	120-150	1053461
210	7.5KW	φ2-8mm	150-300	1204476
230	11KW	φ2-8mm	300-500	1204880
260	15KW	φ2-8mm	500-600	1434880
300	22KW	φ2-8mm	600-1000	1486196
400	37KW	φ2-8mm	1000-1500	18672134

Cow feed making machine maintainance

1. Remove the residual material in the cavity of the ring mold frequently.
2. Before each production shift, fill the lubricating oil in the oil filling mark on the eccentric shaft of the two rollers.
3. check whether the clearance between the roller and the inner wall of the ring mold is in normal condition. 4. check the tightness of the triangle tape.
4. often check the tightness of the triangle tape and adjust it in time.
5. Clean the dust and dirt on the exterior of the equipment frequently.

Pellet maker for animal feed

poultry feed pellet making machine poultry mash feed machine

Poultry pellet machine precautions

1. Pellets do not come out when the machine is turned on. Check whether the material hole is normal or not, if not, use hand drill to play the material hole. Pay attention to the water content of the mixing material, adjust the gap between the inner wall of the ring mold and the rollers.
2. low pellet molding rate. The reason is that the water content of the material is too low, and the water content of the powder material should be increased.
3. rough surface of granule. Attention should be paid to the material refueling, cyclic extrusion to grind, so that it reaches the required degree of smoothness.
4. output is too low. If the feeder is not enough, you can raise the feeder gate opening degree. If the ring mold wall and roller gap is too large, the gap can be adjusted to about 0.15 mm. If the powder in the ring mold caking, remove the caking in the ring mold set.
5. Sudden stoppage of the main machine. Should check the fuse, clear the ring mold cavity material, and accordingly reduce the amount of feed. If the material mixed with foreign matter, should be immediately shut down to remove, etc..
