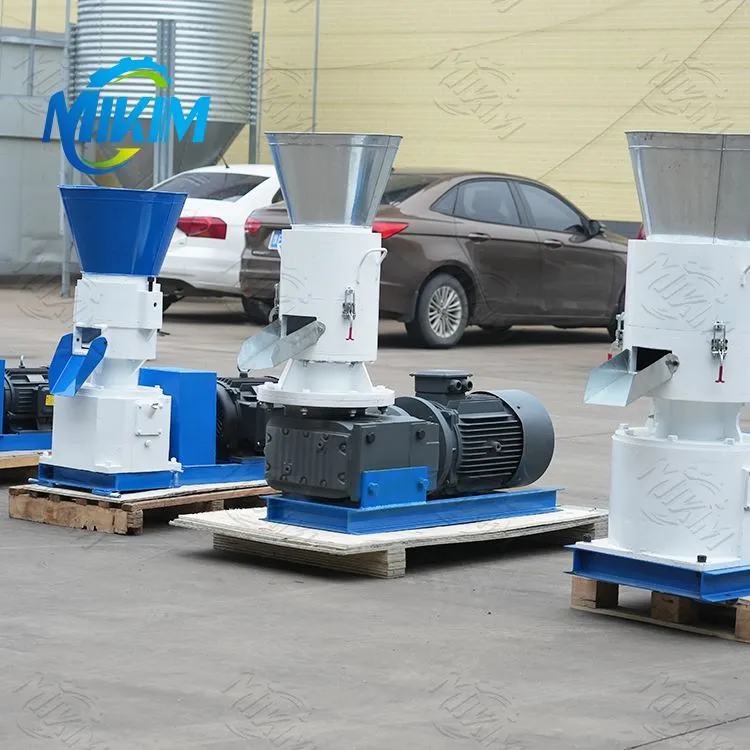

Household Feed Automatic Pellet Machine
Feed pellet machine can produce by itself with raw materials.
Description
Products Description
Removing the old bearing
1. Stop the operation of the film pelletizer. Turn off the power and disconnect the power cord.
2. Remove the pipes of the feed and discharge ports of the film pelletizer.
3. Remove the bearing cover. If the film pelletizer uses a double-sided cover, you need to remove both covers in turn.
4. Remove the bearing. Use a special bearing removal tool to remove the bearings one by one. If the bearing is tight, you can use a hammer to add slight impact to gradually pry the bearing out.
5. Clean the debris and dust in the bearing seat hole.
Product Parameters
| Model | Capacity | Power | Weight | Dimension |
| BH-125 | 80-100(KG/HR) | 3(KW) | 95(KG) | 110*35*70(CM) |
| BH-150 | 120-150(KG/HR) | 4(KW) | 100(KG) | 115*35*80(CM) |
| BH-210 | 200-300(KG/HR) | 7.5(KW) | 200(KG) | 115*45*95(CM) |
| BH-260 | 500-600(KG/HR) | 15(KW) | 320(KG) | 130*53*105(CM) |
Install the new bearing
1. Apply an appropriate amount of lubricating oil and install the new bearings one by one on the bearing seat.
2. If a double-sided cover is used, you need to install one cover first and then add lubricating oil.
3. Inject the lubricating oil in the bearing well until the lubricating oil can overflow from the oil outlet.
4. Install the bearing cover. If a double-sided cover is used, install one cover first, lubricate it gradually, and then install the other cover.
5. Install the pipes for the feed and discharge ports.
6. Reconnect the power supply and start the ring film granulator.
1. Before replacing the bearing, you need to prepare special tools and carefully check the brand, model and bearing size of the equipment to ensure that the correct bearing is replaced.
2. When replacing the bearing, you need to strictly follow the steps to avoid damage to the equipment due to improper operation.
3. Before replacing the bearing, you need to check the debris and dust in the bearing seat hole and clean it up to ensure the life of the new bearing.
Our advantages
1. Different models can meet customers' own requirements.
2. Customized design for customers.
3. Our equipment is reasonably priced.
4. We will send employees to solve unsolvable problems for you every year.
5. Our after-sales service is perfect.
