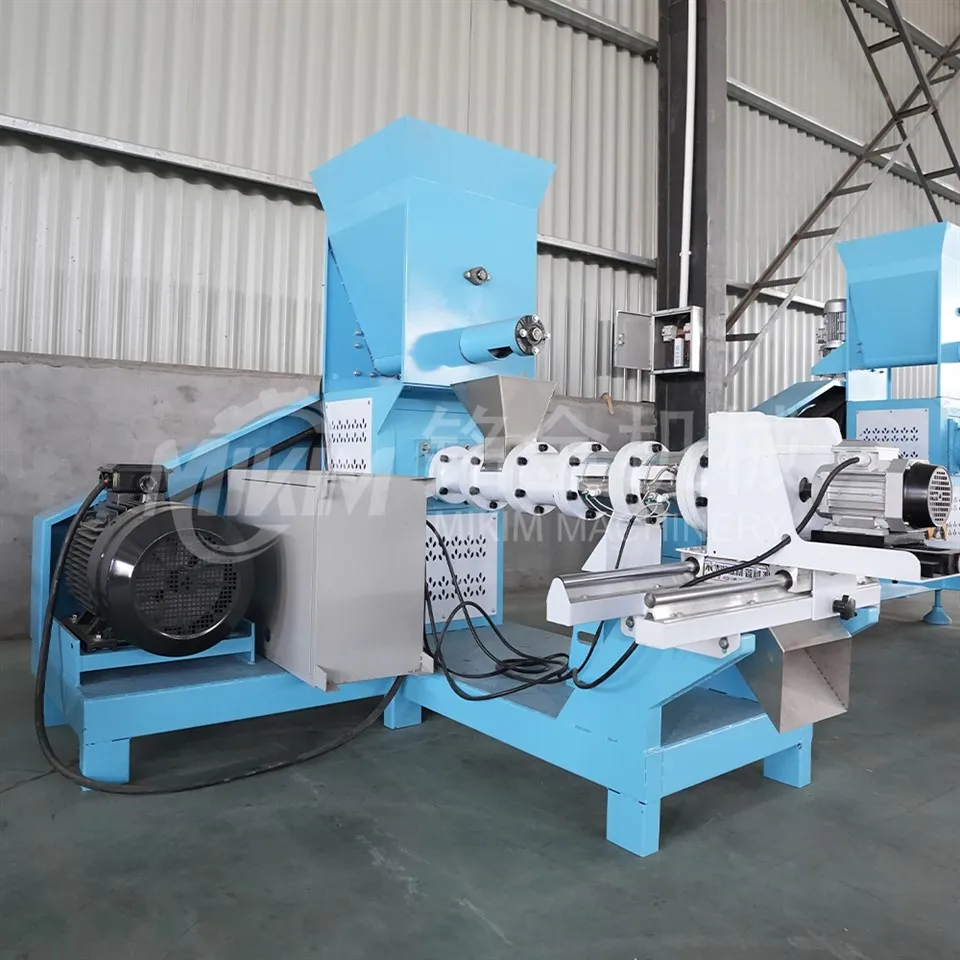

Aquaculture Extruded Pellet Feed Machine
Feed extruder can use a variety of raw materials for extrusion.
Description
Products Description
The extruder used in the feed industry is mainly composed of a speed-adjusting feeding device, a heating device, a cutting device, a main motor, a cutting motor, a speed-adjusting motor and a control box.
The feed extruder adopts a soft knife fitting cutting form, and uses the characteristics of the cutter motor's stepless speed change to control the size of the extruded particles. The size and shape of the extruded particles can be achieved by replacing molds of different specifications.
The feed extruder can process pet feeds such as cat food and dog food, as well as high-end feeds such as aquatic feed and suckling pig feed.
Product Parameters
| Model | 100 | 120 |
| Power | 37KW | 55KW |
| Yield | 700-1000 | 1200-1500 |
| Weight | 750KG | 850KG |
| Size(mm) | 1970*2900*1150 | 2200*2900*1200 |
The feed extruder is composed of a feeding device, an extruding device, a cutting device, a control box, a main motor, etc.
The feeding device is composed of a hopper, a speed-adjusting motor, a reducer, a spiral pusher shaft, and a feed lever; function: automatic feeding to solve the problem of uneven manual feeding.
The extruder is composed of a screw, an outer sleeve, an inner screw sleeve, a heating device, a head, and a mold; function: the raw materials are extruded and matured by extrusion heating, and then the raw materials are extruded and formed through different flower-shaped molds.
The extruder is an indispensable machine in the industry. Different models of extruders have different parameters, and they need to be selected based on production needs, budget, equipment quality, etc. I hope this article can help readers better understand the extruder model parameters and choose the extruder model that suits them.
