Fish Feed Manufacturing Machine

Due to the many varieties of aquatic feeds, big changes of raw materials, high requirements of crushing fineness and poor fluidity of materials, the production process of aquatic puffed pellet feed requires high requirements, and the typical process mainly includes: the reception of raw materials, cleaning, coarse crushing, primary batching and mixing, secondary crushing, secondary mixing, tempering and puffing, pelleting and spraying, and the product grading and packaging and other processes.

The raw materials used in feed mills are mainly in the form of powder and granule. The former does not require coarse crushing, the raw materials can be directly through the pit, elevator, into the cone cleaning sieve to remove impurities, and then magnetic separation, through the distributor or spiral winch directly into the batching bin, participate in the batching. The latter need to be roughly crushed, the material through the pit, elevator into the cleaning equipment for the removal of impurities and magnetic separation processing, into the bin to be crushed. The main purpose is to reduce the material particle size difference and the range of variation, improve the working condition of the ultra-micro pulverizer, improve the working efficiency of the ultra-micro pulverizer, to ensure stable product quality.

Machine for making fish feed

Due to the low intake of aquatic animals, short digestive tract, poor digestive ability, so the requirements of aquatic feed crushed particle size is very fine, such as shrimp material should be all through the 40-mesh analytical sieve, 60-mesh sieve on the material should be less than 5%, so it must be used in the secondary crushing process. In the secondary crushing process, a mix of materials after lifting into the bin to be crushed, and then into the secondary crusher, after the completion of the secondary crushing process, into the rotary grading sieve, to remove coarse fibers in the feed in the crushing process of the formation of fine fluff.

Each raw material enters the secondary mixer after the second batching. In the upper part of the secondary mixer there is an artificial feeding port for the addition of trace additives, there are two liquid adding devices on the mixer, respectively, for the addition of grease and water. In the process of secondary mixing, the materials must be fully mixed, and the coefficient of variation CV is less than 5%. The materials are micro-crushed and mixed with secondary ingredients and then enter into the latter process---expanding and granulating process.

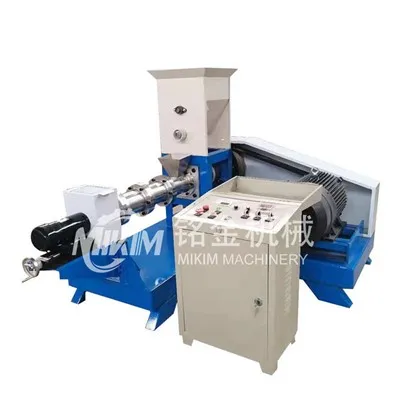

Floating fish feed making machine

In the extrusion puffing process, the material is cooked for a period of time at high temperature, high humidity and high pressure, during which the physical and chemical properties of the material undergoes drastic changes (mainly starch dextrinization and protein denaturation), and the pressure suddenly drops at the moment of extrusion from the die hole, the moisture in the feed is transformed from liquid to gas and emitted from the feed, resulting in the material puffing up and the formation of the so-called puffed feed. Because this feed not only has the advantages of general hard pellet feed - good palatability, avoiding automatic grading of products, easy to transport, but also has a unique advantage - high degree of starch paste in the feed, protein is more easily digestible, reduce the feeding process of the Waste, improve the utilization rate of feed for animals; has excellent floatability, easy to observe the feeding situation of fish, can control water pollution.
