Description
Products Description

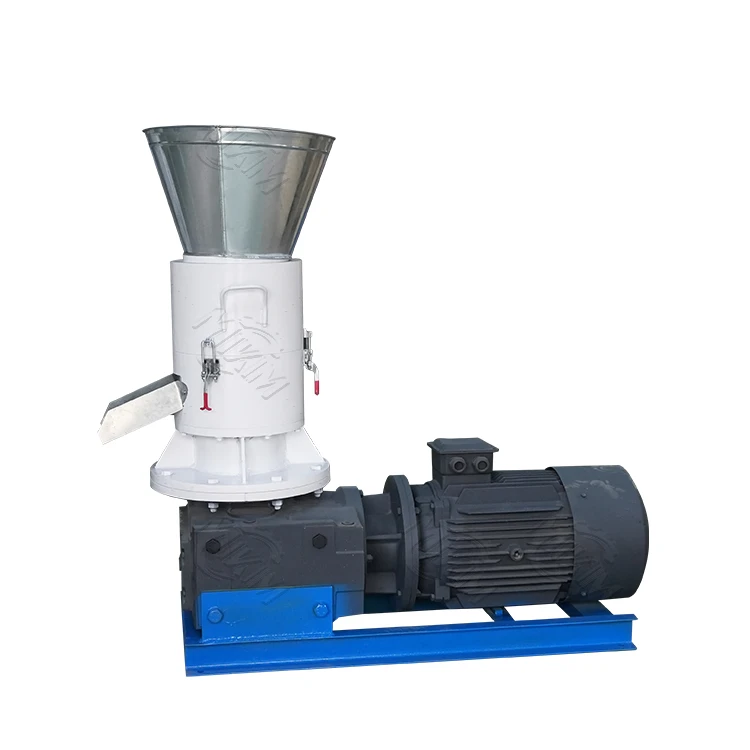

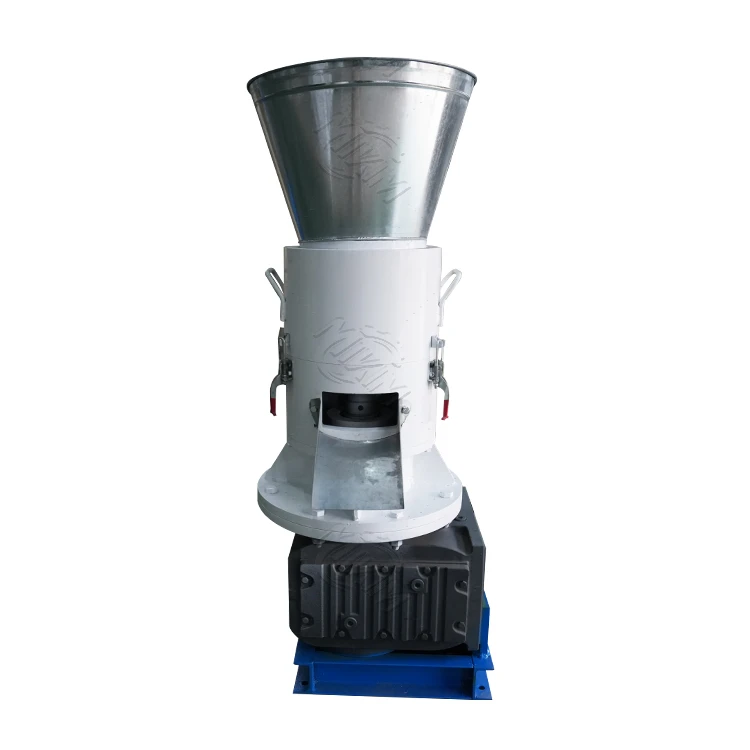

When the feed pellet machine is in use, in the mold with the same diameter, the diameter of the ring die pressing wheel is limited by the mold, so the pressure is limited; the diameter of the flat die pressing wheel is not limited by the mold, which can increase the space for installing the bearing and select large bearings to increase the bearing capacity of the pressing wheel, which not only improves the pressing force of the pressing wheel, but also extends the service life.
Product Parameters
|
Model |
Capacity |
Dimension |
Weight |
|
MK-125 |
80-100kg/h |
110*35*70 cm |
95 kg |
|
MK-150 |
120-150kg/h |
115*35*80cm |
100 kg |
|
MK-210 |
200-300kg/h |
115*45*95cm |
300 kg |
|
MK-260 |
500-600kg/h |
138*46*100cm |
350 kg |
|
MK-300 |
700-800kg/h |
130*53*105cm |
600 kg |
|
MK-360 |
900-1000kg/h |
160*67*150cm |
800 kg |
|
MK-400 |
1200-1500kg/h |
160*68*145cm |
1200 kg |
| 1.Used for making animal feed pellets
2.Used for making wood pellets as fuel 3.Raw material size need 3-5mm ; Humidity :10-12% |
|||
The ring die is one of the main components of the pellet feed machine. Its material is mostly high-chromium alloy steel with a hardness of HRC45 and a tensile strength of ≥980MPA. The surface hardness of the ring die can reach 60 after heat treatment. The ring die is mostly a cylindrical porous part, and the shape of its hole is mostly a straight hole. In actual production and processing, wedge-shaped holes with a die hole of 5°~10° are often used, which is easier to demold than circular holes and more convenient for cutting with a rotating hob.
The ring die and the pressing roller in the pellet feed machine are key components of the entire set of equipment. How to select the size of the ring die and the pressing roller becomes the key factor in the success of pelleting. Therefore, choosing the best die roller diameter ratio λ=rR is the key issue in designing a pellet feed machine. Solving this problem will not only help to further understand some basic laws in the pelleting process, but also provide a theoretical basis for the design and parameter optimization of pellet feed machines in the future.
