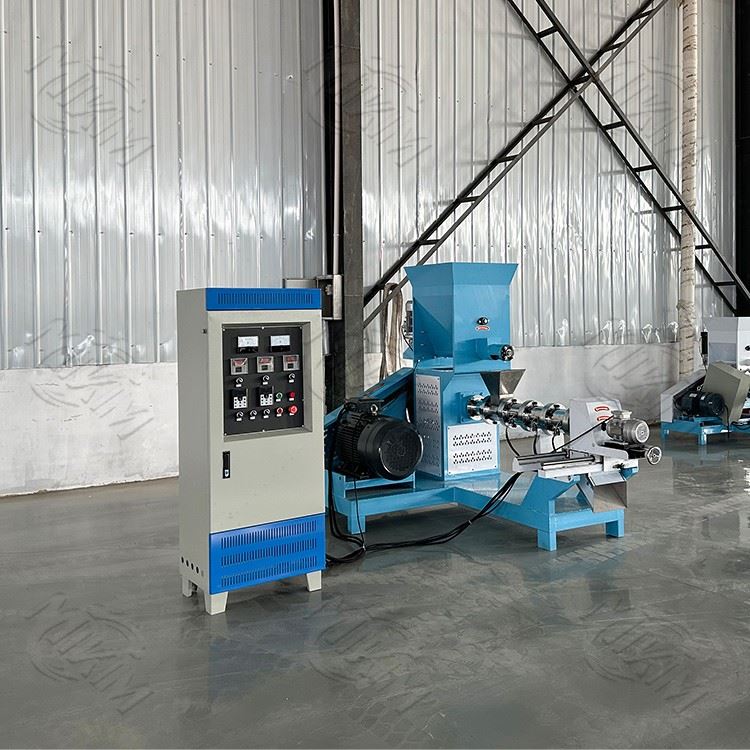

Crayfish Feed Extruder
Shrimp feed pellet extruder machine uses high-temperature extrusion to produce high-quality floating or sinking feed for crayfish, shrimp and fish with adjustable pellet size and stable performance.
Description
🧠 AI Overview
The prawn feed extruder machine is a specialized machine designed for producing high-quality floating or sinking feed pellets for crayfish, shrimp, and other aquatic animals. It uses high-temperature and high-pressure extrusion technology to improve feed digestibility and reduce waste. This machine is widely used in aquaculture farms and feed production plants due to its stable performance, adjustable pellet size, and energy-efficient operation.
🐟 What is a small shrimp feed making machine?
A small shrimp feed making machine is a type of aquatic feed processing machine that transforms powdered raw materials into uniform pellets through extrusion technology.
It is mainly used for:
- Crayfish feed production
- Shrimp feed manufacturing
- Aquatic animal feed processing
Compared with traditional feed methods, extrusion improves nutrient absorption and reduces water pollution.
🔬 Working Principle
- Raw materials are mixed and fed into the hopper
- Screw conveyor pushes material into the barrel
- High temperature and pressure gelatinize starch
- Material is extruded through die holes
- Pellets are cut into uniform sizes
- Output becomes expanded floating or sinking feed
Small Shrimp Feed Pellet Extruder Machine Production Process
📊 Technical Parameters (Example)
Capacity: 100–1000 kg/h
Power: 11–75 kW
Pellet size: 1–8 mm
Voltage: 220V / 380V / Customized
Feed type: Floating / Sinking adjustable
(Custom configurations available for different production needs)
⚙️ Key Advantages of small shrimp feed pellet machine
🔥 1. High Feed Utilization Efficiency
Extrusion improves digestibility by 15–30%, reducing feed waste in ponds.
🔥 2. Adjustable Pellet Size
Produces pellets from 1mm to 8mm, suitable for different aquatic species.
🔥 3. Floating & Sinking Feed Control
By adjusting temperature and pressure, operators can produce:
- Floating feed (fish, shrimp)
- Sinking feed (crayfish, bottom feeders)
🔥 4. Energy Efficient Operation
Optimized screw design reduces energy consumption while maintaining output stability.
🔥 5. Suitable for All Scales
From small farms (100 kg/h) to industrial factories (1000+ kg/h).
🐠 Applications & Target Users
👨🌾 1. Aquaculture Farmers
- Crayfish farms (pond or tank systems)
- Shrimp farms (Vannamei shrimp, freshwater shrimp)
- Fish farms (tilapia, carp, catfish)
👉 Benefit: Reduce feed cost by 20–40% by producing own feed.
🟡 2. Feed Production Startups
- Rural feed workshops
- Small agricultural cooperatives
- New aquatic feed businesses
👉 Need:
- Low investment production line
- Flexible feed formula
- Easy operation system
🔵 3. Medium & Large Feed Factories
Aquatic feed manufacturers
OEM feed producers
Regional feed suppliers
👉 Focus:
- Stable output (200–1000 kg/h)
- Continuous 24h operation
- Consistent pellet quality
🌍 4. Government & Agricultural Projects
- Rural aquaculture development
- Fishery modernization programs
- Cooperative farming systems
🐟 Animals Supported
This system is not limited to crayfish feed.
🦞 Crayfish
Juvenile feed (1–2mm)
Adult feed (2–4mm)
✔ Improves growth rate
✔ Reduces water pollution
🦐 Shrimp
White shrimp / Vannamei shrimp
✔ Floating or slow-sinking feed improves feeding efficiency
🐟 Fish Species
Tilapia
Catfish
Carp
Grass carp
Ornamental fish
✔ Adjustable feed density
🐢 Other Aquatic Animals
Soft-shell turtle
Frogs (regional use)
🏭 Complete shrimp Feed Production Line Process
A full production line includes 8 continuous stages:
🟢 1. Raw Material Crushing System
🧩 Equipment: Crusher / Grinder
⚙️ Function:
Crushes raw materials into fine powder (60–80 mesh).
🌾 Materials:
Corn, soybean meal, wheat bran, fish meal, rice bran
🎯 Purpose:
- Improves mixing uniformity
- Prevents extruder blockage
- Enhances nutrient absorption
🟡 2. Mixing System
🧩 Equipment: Horizontal Mixer
⚙️ Function:
Evenly blends all feed ingredients, including protein, vitamins, and minerals.
🔄 Features:
High-speed dual-shaft mixing
Batch or continuous operation
🎯 Benefit:
Ensures every pellet has consistent nutrition composition
🔵 3. Conveying System
🧩 Equipment: Screw Conveyor
⚙️ Function:
Automatically transports mixed powder into the extruder hopper.
🎯 Advantage:
- Reduces manual labor
- Ensures continuous feeding
- Improves production efficiency
🔴 4. Extrusion System (Core Machine)
🧩 Equipment: small sinking shrimp feed pellet extruder
This is the heart of the production line.
⚙️ Function:
Uses high temperature and pressure to:
- Gelatinize starch
- Sterilize materials
- Form feed pellets
⚙️ Adjustable control:
Pellet size: 1–8 mm
Floating / sinking feed
Screw speed and pressure
🎯 Output benefits:
- High digestibility feed
- Strong water stability
- Reduced feed waste
🟣 5. Drying System
🧩 Equipment: Belt Dryer / Hot Air Dryer
⚙️ Function:
Removes moisture from extruded pellets.
🔥 Temperature range:
60°C – 120°C
🎯 Benefits:
- Prevents mold growth
- Extends shelf life
- Improves pellet hardness
🟠 6. Oil Spraying System (Optional but Important)
🧩 Equipment: Flavoring / Oil Coating Machine
⚙️ Function:
Sprays fish oil, amino acids, or attractants onto pellets.
🎯 Benefits:
- Improves palatability
- Increases feed intake
- Enhances nutrition value
🔵 7. Cooling System
🧩 Equipment: Counterflow Cooler
⚙️ Function:
Rapidly cools hot pellets after drying.
🎯 Purpose:
- Stabilizes structure
- Prevents moisture condensation
- Prepares for packaging
🟤 8. Packaging System
🧩 Equipment: Automatic Packing Machine
⚙️ Function:
Weighs and packs finished feed into bags.
📦 Packaging options:
- 5kg / 10kg / 25kg bags
- Bulk industrial packaging
🐟 Applications
This crayfish feed production line is suitable for:
👨🌾 1. Crayfish Farms
On-site feed production
Reduce dependency on commercial feed
Improve growth performance
🦐 2. Shrimp Farming Industry
Vannamei shrimp feed production
Floating or slow-sinking feed customization
🐟 3. Aquaculture Fish Farms
Tilapia, carp, catfish feed production
Multi-species feed manufacturing
🏭 4. Feed Manufacturing Businesses
Start or expand aquatic feed factory
OEM feed production for local brands
Regional feed supply business
🌍 5. Agricultural & Government Projects
Rural aquaculture development
Cooperative farming systems
Fishery modernization programs
💡 Key Advantages of the shrimp feed pellet Production Line
🔥 1. Complete Automated System
From raw material to final packaged feed, no manual interruption required.
🔥 2. Flexible Feed Production
Floating feed
Sinking feed
Adjustable pellet size (1–8 mm)
🔥 3. High Feed Efficiency
Improves digestibility by 15–30%
Reduces feed waste in water by up to 35%
🔥 4. Scalable Capacity
Available production range:
100 kg/h small line
300–500 kg/h medium line
1–2 ton/h industrial line
🔥 5. Cost Reduction
Lower labor cost
Reduced feed purchase cost
Optimized raw material usage
🔥 6. Industrial Stability
24-hour continuous operation
Heavy-duty screw extrusion system
Designed for factory-level production
📊 Typical Production Line Layout
Raw Materials
⬇
Crusher
⬇
Mixer
⬇
Screw Conveyor
⬇
Extruder
⬇
Dryer
⬇
Oil Sprayer
⬇
Cooler
⬇
Packing Machine
🐠 Feed Quality Output
The final feed pellets produced are:
Uniform in size
Stable in water
High in nutrition retention
Strong water resistance (slow sinking or floating)
❓ FAQ
Q1: Can this small sinking shrimp feed pellet machine make floating crayfish feed?
Yes, floating and sinking feed can be adjusted by changing processing parameters.
Q2: What raw materials can be used?
Corn, soybean meal, fish meal, wheat bran, and vitamin premixes.
Q3: Is this machine suitable for small farms?
Yes, we provide small-capacity models starting from 100 kg/h.
Q4: Do you provide installation support?
Yes, video guidance and engineer support are available.
🏭 Real Testing & Cases
Our Crayfish Feed Extruder has been tested in multiple countries including Southeast Asia, South America, and Africa, delivering stable production performance and consistent pellet quality.
📩 Get a Quote Today
Looking for a reliable crayfish feed production solution?
👉 Contact us for:
- Factory price
- Working video
- Custom configuration
- Full production line solution
